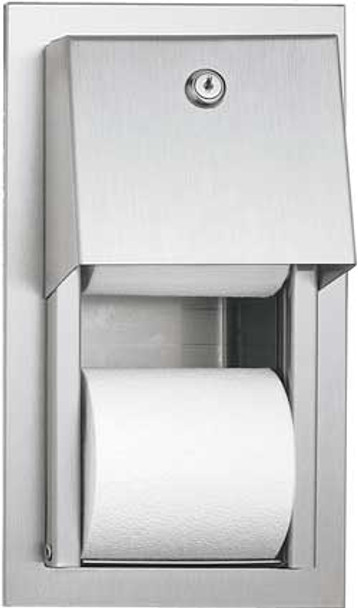

American Specialties Recessed Dual Roll Toilet Tissue Dispenser

American Specialties (ASI 0031 Double-Roll Toilet Paper Dispenser)
Recessed Mounted Twin Hide-A-Roll Toilet Tissue Dispenser shall hold and dispense two (2) standard or two (2) 5-1/4 in. dia. (133mm) 1800 sheets tissue rolls and shall have door, door frame, and dispensing mechanism guide tracks fabricated of alloy 18-8 stainless steel, type 304, 18 gauge; cabinet body shall be same grade, 22 gauge. All exposed surfaces shall be No 4 satin finish and be protected during shipment with a PVC film easily removable after installation. Internal mechanism levers shall be fabricated of molded high-impact resistant plastic for smooth operation. Structural assembly of body and door components shall be of welded construction. Door hinge shall be of heavy-duty stainless steel 3/16 in. dia. rivets. Door shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Vandal resistant rollers shall be of molded high-impact resistant plastic with integral molded-in stainless steel end pins and two (2) rollers shall be supplied. Reloading instructions are printed on graphic label inside door. Bottom roll is depleted prior to top roll automatically dropping into lower position for use. Empty rollers can not be removed without key unlocking door.

This Dispenser uses the "E114" Key Item Number DK50415.
Wall Opening:
6 1/4" x 12 1/4" x 3 3/8" (160 x 310 x 90 mm)
